动态表单

1. 内置表单

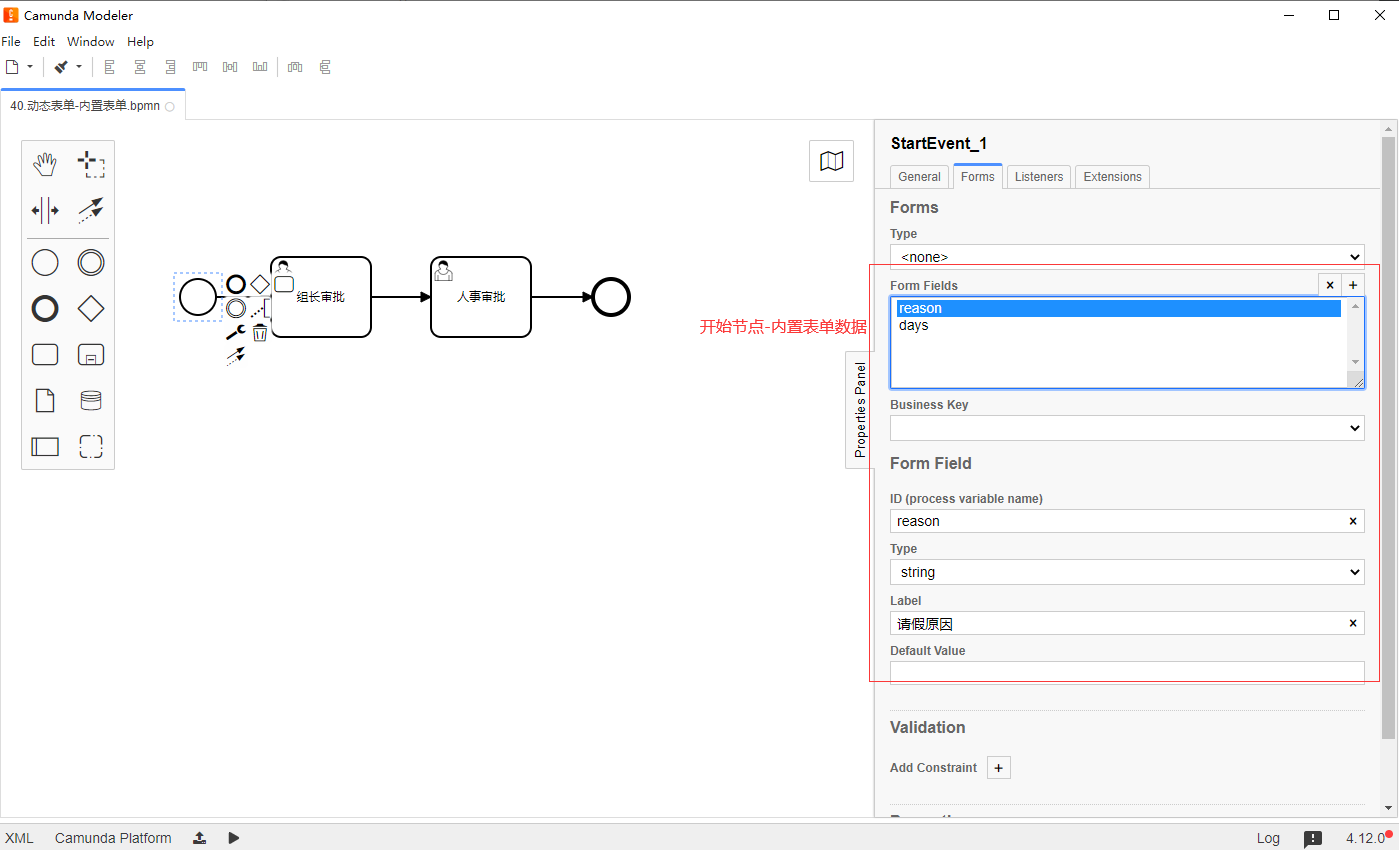

流程图


测试

package com.sw.camundademo;

import org.camunda.bpm.engine.FormService;
import org.camunda.bpm.engine.RepositoryService;
import org.camunda.bpm.engine.RuntimeService;
import org.camunda.bpm.engine.TaskService;
import org.camunda.bpm.engine.form.FormField;
import org.camunda.bpm.engine.form.StartFormData;
import org.camunda.bpm.engine.repository.Deployment;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @Author Suaxi
 * @Date 2024/8/20 21:02
 * @Description
 */
@SpringBootTest
public class FlowFormsTest {

    @Autowired
    private RepositoryService repositoryService;

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

    @Autowired
    private FormService formService;

    @Test
    public void deploy() {
        Deployment deploy = repositoryService.createDeployment()
                .name("动态表单-内置表单")
                .addClasspathResource("flow/40.动态表单-内置表单.bpmn")
                .deploy();
        System.out.println(deploy.getId());
    }

    @Test
    public void getDeploymentData() {
        String processId = "Process_0fc8vlb:1:791e3a95-5ef4-11ef-9b8d-10ffe00abd05";
        StartFormData startFormData = formService.getStartFormData(processId);
        System.out.println("FormKey: " + startFormData.getFormKey());
        List<FormField> formFieldList = startFormData.getFormFields();
        if (formFieldList != null && formFieldList.size() > 0) {
            for (FormField formField : formFieldList) {
                System.out.println(formField.getId() + " - " + formField.getLabel() + ": " + formField.getValue().getValue());
            }
        }
    }

    @Test
    public void startFlow() {
        String processId = "Process_0fc8vlb:1:791e3a95-5ef4-11ef-9b8d-10ffe00abd05";
        Map<String, Object> map = new HashMap<>();
        map.put("reason", "有事要请假！");
        map.put("days", 3);
        runtimeService.startProcessInstanceById(processId, map);
    }

    @Test
    public void startFormFlow() {
        String processId = "Process_0fc8vlb:1:791e3a95-5ef4-11ef-9b8d-10ffe00abd05";
        Map<String, Object> map = new HashMap<>();
        map.put("reason", "我要请假！");
        map.put("days", 5);
        formService.submitStartForm(processId, map);
    }

    @Test
    public void getTaskFormData() {
        String processId = "Process_0fc8vlb:1:791e3a95-5ef4-11ef-9b8d-10ffe00abd05";
        String taskId = "5fe00ff2-5ef6-11ef-859a-10ffe00abd05";
        StartFormData startFormData = formService.getStartFormData(processId);
        List<FormField> formFieldList = startFormData.getFormFields();
        if (formFieldList != null && formFieldList.size() > 0) {
            for (FormField formField : formFieldList) {
                String id = formField.getId();
                System.out.println(id + ": " + taskService.getVariable(taskId, id));
            }
        }
    }

}
